Hydraulic Shearing Machine Manufacturer in Ahmedabad

Download

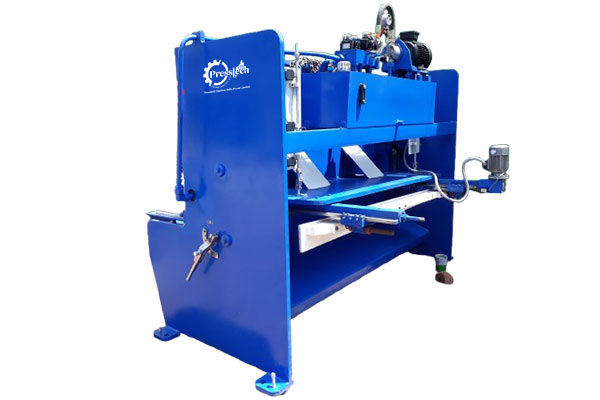

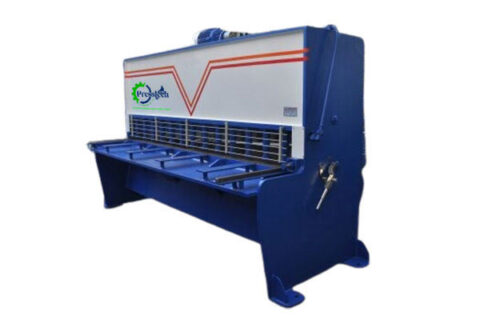

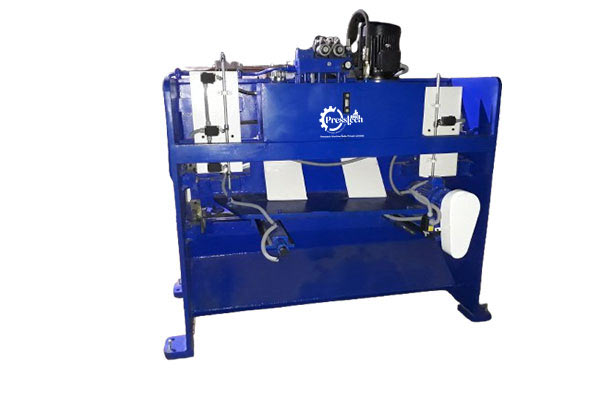

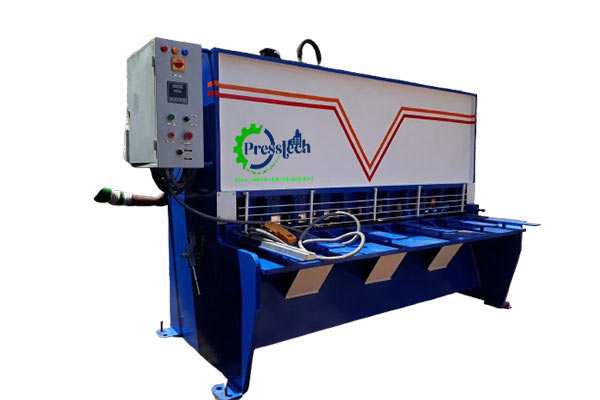

High-Performance Hydraulic Shearing Machine

Presstech Machine India Pvt. Ltd. is a trusted Hydraulic Shearing Machine Manufacturer in Ahmedabad, Gujarat, offering heavy-duty machines for accurate and smooth sheet metal cutting. Our Hydraulic Shearing Machines are designed for fabrication units, engineering workshops, construction material manufacturers, automotive component makers, and industrial cutting applications where clean cutting, stable performance, and long service life are important.

As a reliable Hydraulic Shearing Machine Supplier in Gujarat, we provide machines with a strong welded steel body, sharp cutting blades, adjustable rake angle, powerful hydraulic system, back gauge support, and operator-friendly controls. These machines help industries cut MS, SS, aluminium, brass, copper, and other sheet metals with better accuracy, less material wastage, and faster production output.

Key Features

Strong and rigid welded steel structure for long-lasting performance
Hydraulic system for smooth, powerful, and accurate cutting
High-quality cutting blades for clean and sharp sheet metal cutting
Adjustable rake angle for better cutting control
Back gauge support for accurate and repeatable cutting length

Hold-down system to keep sheets stable during cutting
Low vibration operation for better safety and machine stability
Easy maintenance design with quality hydraulic components
Suitable for MS, SS, aluminium, brass, copper, and other sheet metals
Available in different models, capacities, and cutting lengths

Applications of Hydraulic Shearing Machine

Sheet Metal Fabrication

Hydraulic shearing machines are widely used in sheet metal fabrication units for cutting large metal sheets into smaller sizes before bending, welding, punching, or assembly work.

Construction industry

These machines are useful for cutting metal roofing sheets, steel plates, structural parts, flooring plates, and other construction-related metal components.

Automotive industry

Hydraulic shearing machines help cut metal sheets that are later used for car body parts, truck components, panels, covers, and other automobile applications.

Industrial cutting operations

The machine is suitable for heavy-duty cutting operations where accuracy, speed, and smooth finishing are required in continuous production.

How to Choose the Right Hydraulic Shearing Machine

Choosing the right hydraulic shearing machine is important for better cutting results and long-term performance. A small-capacity machine may not be suitable for heavy cutting, while an oversized machine may increase power and space requirements. So, the machine should be selected according to the exact industrial application.

Before buying a hydraulic shearing machine, check these important points:

Required sheet cutting length
MS and SS cutting capacity
Type of material to be cut
Rake angle range
Strokes per minute
Back gauge length

Hold-down capacity
Motor power
Oil tank capacity
Machine dimensions
Approximate machine weight
After-sales service and spare support

Technical Specifications

MODEL NO.	SHEARING LENGTH	SHEARING CAPACITY				STANDARD RAAKE	RAKE ANGLE RANGE	STROKES/MIN		SQUARING ARM LENGTH	BACK GUAGE	HOLD DOWNS	HOLDING FORCE	MOTOR POWER	OIL TANK CAPACITY	OVERALL DIMENSION (approx.)	APPROX WEIGHT
MODEL NO.	SHEARING LENGTH	MS IN STD. RK ANG	MS IN MAX.RK ANG	SS IN STD. RK ANG	SS IN MAX. RK ANG	STANDARD RAAKE	RAKE ANGLE RANGE	AT MIN. RAKE	AT MAX. RAKE	SQUARING ARM LENGTH	BACK GUAGE	HOLD DOWNS	HOLDING FORCE	MOTOR POWER	OIL TANK CAPACITY	OVERALL DIMENSION (approx.)	APPROX WEIGHT
	mm	mm	mm	mm	mm	deg	deg	nos/min	nos/min	mm	mm	nos	kg	HP	Lt.	mm x mm x mm	kg
HVR-215	1500	2	3.15	1	1.6	1°	0.5-2°	26	13	600	600	8	1500	3	–	2250x1600x1500	–
HVR-220	2000	2	3.15	1	1.6	1°	0.5-2°	24	11	600	600	11	1500	3	–	2750x1600x1500	–
HVR-225	2500	2	3.15	1	1.6	1°	0.5-2°	22	10	600	600	13	1800	3	110	2900x1600x1500	2600
HVR-230	3000	2	3.15	1	1.6	1°	0.5-2°	18	8	600	600	15	1800	3	110	3400x1600x1500	2900
HVR-315	1500	3.15	4	2	3.15	1.15°	0.5-3°	24	10	600	600	8	2000	5	95	2250x1850x1950	2100
HVR-320	2000	3.15	4	2	3.15	1.15°	0.5-3°	20	11	–	600	11	2000	5	–	2750x1850x2050	–
HVR-325	2500	3.15	4	2	3	1.15°	0.5-3°	28	13	600	600	13	2500	5	110	3200x1850x1950	3600
HVR-330	3000	3.15	4	2	3	1.15°	0.5-3°	24	9	1000	800	15	2500	5	110	3700x1850x2050	4100
HVR-340	4000	3.15	4	2	3	1.15°	0.5-3°	12	6	–	800	20	3200	7.5	–	4750x1850x2050	–
HVR-415	1500	4	6	3.15	4	1.37°	0.5-3°	24	10	1000	800	8	4500	5	100	2250x1850x2050	3300
HVR-420	2000	4	6	3.15	4	1.37°	0.5-3°	24	10	1000	800	11	6200	7.5	120	2750x1850x2050	3600
HVR-425	2500	4	6	3.15	4	1.37°	0.5-3°	22	8	1000	800	13	8000	7.5	120	3300x2550x2400	5100
HVR-430	3000	4	6	3.15	4	1.37°	0.5-3°	22	8	1000	800	15	10000	7.5	120	3700x2250x2400	6100
HVR-440	4000	4	6	3.15	6	1.37°	0.5-3°	18	6	1000	800	20	12000	7.5	140	4500x2250x2400	8200
HVR-615	1500	6	8	4	6	1.45°	0.5-3°	24	8	1000	800	8	6500	10	130	2250x1900x2100	4100
HVR-625	2500	6	8	4	6	1.45°	0.5-3°	24	8	1000	800	13	8500	15	160	3300x2250x2500	6100
HVR-640	4000	6	8	4	6	2°	0.5-3°	24	6	1000	800	20	13600	10	170	4800x2250x2500	8200
HVR-815	1500	8	10	6	8	2°	0.5-3°	20	10	1000	800	8	10500	15	140	2250x2050x2200	5300
HVR-820	2000	8	10	6	8	2°	0.5-3°	15	8	1000	800	11	12000	15	160	2750x2050x2200	6100
HVR-825	2500	8	10	6	8	2°	0.5-3°	20	8	1000	800	13	16500	15	170	3300x2350x2600	7600
HVR-830	3000	8	10	6	8	2°	0.5-3°	18	6	1000	800	15	18500	15	170	3800x2350x2600	9100
HVR-840	4000	8	10	6	8	2°	0.5-3°	15	6	1000	800	20	23000	15	180	4800x2350x2600	12600
HVR-850	5000	8	10	6	8	2°	0.5-3°	12	3	1000	800	24	27000	25	180	5750x2350x2600	–
HVR-1015	1500	10	13	8	10	2°	0.5-3°	20	10	1000	800	8	10500	20	160	2250x2050x2300	6100
HVR-1020	2000	10	13	8	10	2°	0.5-3°	18	8	1000	800	11	13000	20	170	2750x2050x2300	7100
HVR-1025	2500	10	13	8	10	2°	0.5-3°	18	8	1000	800	13	17500	20	180	3300x2500x2800	9100
HVR-1030	3000	10	13	8	10	2°	0.5-3°	15	6	1000	800	15	20000	20	180	3800x2500x2800	11600
HVR-1040	4000	10	13	8	10	2°	0.5-3°	12	4	1000	800	20	25000	20	190	4800x2500x2800	15100
HVR-1320	2000	13	16	10	13	2°	0.5-3°	13	5	1000	800	11	16500	20	210	2750x2200x2500	7100
HVR-1325	2500	13	16	10	13	2°	0.5-3°	15	8	1000	800	13	32000	20	220	3350x2600x2800	9100
HVR-1330	3000	13	16	10	13	2°	0.5-3°	12	6	1000	800	15	37000	20	230	3800x2600x2800	12000
HVR-1340	4000	13	16	10	13	2°	0.5-3°	10	4	1000	800	20	22000	25	250	4850x2200x2800	15500
HVR-1620	2000	16	20	13	16	2°	0.5-3°	13	7	1000	800	11	22000	25	220	2750x2200x2600	12500
HVR-1625	2500	16	20	13	16	2°	0.5-3°	15	8	1000	800	13	25000	25	230	3500x2600x2900	15100
HVR-1630	3000	16	20	13	16	2°	0.5-3°	12	6	1000	800	15	43500	25	240	4000x2600x2900	17000
HVR-1640	4000	16	20	13	16	2°	0.5-3°	10	4	1000	800	20	30000	25	260	5100x2750x2900	20100

FAQs on Hydraulic Shearing Machine

What is a Hydraulic Shearing Machine?

A Hydraulic Shearing Machine is an industrial machine used for cutting metals and other materials with precision. It uses hydraulic power to apply force to the blades, allowing for high-quality and consistent cuts. The machine is ideal for a variety of applications in industries like manufacturing, metalworking, and construction.

How does the Hydraulic Shearing Machine work?

The Hydraulic Shearing Machine works by using hydraulic pressure to apply force to the blades, which then cut through metal sheets with high precision. The adjustable back gauge ensures accurate cutting lengths, while the motorized system facilitates smooth operation. The machine also features customizable settings for different materials and thicknesses.

What materials can be cut with a Hydraulic Shearing Machine?

The Hydraulic Shearing Machine can cut various materials including MS (Mild Steel), SS (Stainless Steel), Aluminum, Brass, and Copper. It’s designed to handle a wide range of thicknesses from 2mm to 25mm, making it versatile for industrial use.

What are the key features of the Hydraulic Shearing Machine?

Key features of the machine include precise blade clearance adjustment for burr-free shearing, powerful clamping force, flexible sheet support for heavier plates, emergency stop push switches, digital stroke counter meters for fast productivity, and adjustable strokes for short pieces. Additionally, the machine has built-in safety features such as tower lights and safety finger guards.

How accurate is the Hydraulic Shearing Machine?

The Hydraulic Shearing Machine provides high accuracy with an accuracy rate of ±0.1mm/m. The precise blade gap setting and the adjustable rake angle ensure smooth and accurate cutting for a variety of materials and thicknesses.

Where are the Hydraulic Shearing Machines manufactured?

Presstech Machine India Pvt. Ltd. is a trusted Hydraulic Shearing Machine Manufacturer in Ahmedabad and Supplier in Gujarat. Our machines are built with the latest technology to meet international quality standards, ensuring durability and high-performance operation.

Can the Hydraulic Shearing Machine be customized for specific applications?

Yes, Presstech offers customizable hydraulic shearing machines designed to meet the specific requirements of your industrial applications. Our experienced team ensures the right configuration to optimize productivity and deliver precision cutting results based on your needs.

What is the difference between Hydraulic Shearing Machine and Mechanical Shearing Machine?

A hydraulic shearing machine uses hydraulic pressure for smooth and powerful cutting, while a mechanical shearing machine works with mechanical force. Hydraulic machines are generally better for heavy-duty cutting, better control, and stable performance.

How do I maintain a Hydraulic Shearing Machine?

Regular maintenance includes checking hydraulic oil level, blade sharpness, back gauge setting, lubrication, electrical controls, and machine alignment. Proper maintenance helps improve cutting accuracy and machine life.
