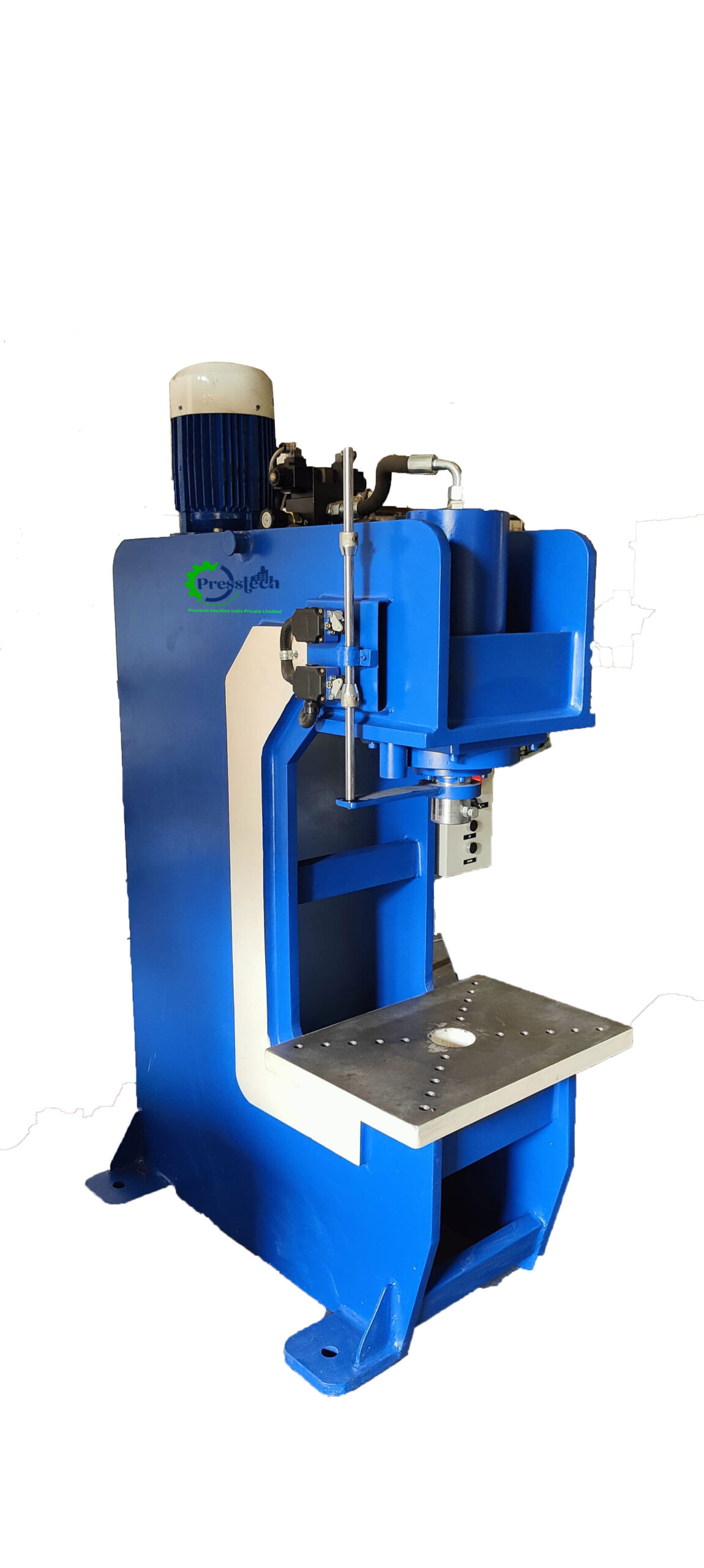

C Frame Hydraulic Press Manufacturer in Ahmedabad India
Presstech Machine India Pvt. Ltd. is a C Frame Hydraulic Press manufacturer in Ahmedabad, Gujarat, providing compact and customised pressing solutions for metalworking industries. The open-front C Frame structure provides easy access to the working area, making the machine suitable for bending, punching, stamping, blanking, straightening and component assembly.
Our C Frame hydraulic presses are available in different tonnage capacities, table sizes, stroke lengths and control configurations. Each machine can be designed according to the workpiece size, required pressure, production volume and automation needs of the customer.
Our goal is to be more than just an equipment provider; we want to be your partner in success. We focus on building machines that solve your factory’s everyday challenges. Our presses provide high force while maintaining operator safety. We use only premium steel and top-tier hydraulic parts to ensure every movement is smooth and accurate. Whether you require a standard model or a machine built to your exact needs, we are the dedicated manufacturer you can rely on for excellence.
Key Features Of C Frame Hydraulic Press
- Open front design with three-side access for easy loading.
- Compact, space-saving body perfect for smaller workshops.
- Adjustable pressure control to handle different materials and prevent damage.
- High precision and accuracy for perfectly shaped parts
- High precision and accuracy for perfectly shaped parts.
- Integrated safety guarding and two-hand controls for operator protection.
- Durable, heavy-duty steel construction ensures long life.
Applications of C Frame Hydraulic Press
C Frame HYDRAULIC
| Model No. | Capacity Ton |
Size of Table mm |
Size of Slide mm |
Stroke mm |
Daylight mm |
Shut Height mm |
Motor HP |
Advance Speed mm/sec. |
Working Speed mm/sec. |
Return Speed mm/sec. |
Weight Kg. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PMCP-10 | 10 | 500×400 | 400×350 | 250 | 350 | 100 | 2 | 60 | 10 | 95 | 750 |
| PMCP-20 | 20 | 600×450 | 500×400 | 300 | 400 | 100 | 3 | 45 | 10 | 80 | 1250 |
| PMCP-30 | 30 | 700×500 | 600×450 | 350 | 500 | 150 | 5 | 50 | 10 | 70 | 1850 |
| PMCP-50 | 50 | 800×600 | 700×650 | 350 | 500 | 150 | 7.5 | 45 | 10 | 70 | 3500 |
| PMCP-80 | 80 | 900×600 | 800×700 | 400 | 600 | 200 | 10 | 40 | 8 | 70 | 4150 |
| PMCP-100 | 100 | 1000×750 | 900×700 | 400 | 600 | 200 | 10 | 30 | 7 | 70 | 4800 |
| PMCP-150 | 150 | 1200×800 | 1100×725 | 500 | 750 | 250 | 15 | 30 | 7 | 70 | 6600 |
| PMCP-200 | 200 | 1300×900 | 1200×800 | 600 | 850 | 250 | 20 | 30 | 7 | 70 | 11000 |
| PMCP-250 | 250 | 1500×1000 | 1400×900 | 700 | 1000 | 300 | 25 | 30 | 7 | 70 | 12500 |
| PMCP-300 | 300 | 1500×1000 | 1400×900 | 700 | 1000 | 300 | 30 | 30 | 7 | 70 | 13500 |
Technical Specifications
| Parameter | Details |
|---|---|
| Machine Type | C Frame / Gap-Frame Hydraulic Press |
| Operation Type | Manual, Semi-Automatic, or Fully Automatic |
| Tonnage Capacity | 10 Tons to 300 Tons |
| Stroke Length | 250 mm to 700 mm depending on model |
| Daylight (Open Height) | 200 mm to 800 mm |
| Pressing Speed | 5 mm/sec to 30 mm/sec |
| Motor Power | 2 HP to 30 HP standard with custom configurations available |
| Control System | PLC Touchscreen or Dual-Hand Safety Buttons |
FAQs on C Frame Hydraulic Press
Choosing an Ahmedabad-based manufacturer means you get high-quality machines engineered with local expertise. Our region has a strong manufacturing base, giving us access to premium materials and skilled workers. Buying locally also ensures that we can provide you with fast delivery, immediate installation support, and quick access to spare parts, keeping your factory productive.
The biggest advantage of the C Frame Hydraulic Press is its open design. With openings at the front and both sides, operators have unparalleled accessibility and visibility. This makes it much easier and faster to place workpieces, change tools, and work with awkwardly shaped parts, which is more difficult inside the closed frame of an H-frame press.
Yes, custom manufacturing is our specialty. As an experienced manufacturer, we work closely with you. We can customize the machine’s tonnage, bed size, stroke length, and speed, and can even integrate automation or specialized control systems to perfectly fit your production goals. We ensure your machine solves your specific problems.
Maintenance is easy but important. You must keep the machine clean and well-lubricated. Regularly check the hydraulic oil level and the oil filter. We recommend changing the hydraulic oil and filters at least once a year. It is also wise to inspect the hydraulic hoses, valves, and cylinder seals for any leaks. Following these simple steps ensures a long, productive machine life.
It really depends on your production volume. If you own a small repair shop or only need the press for occasional tasks, a manual machine from your reliable C Frame Hydraulic Press supplier is cheaper and works great. However, if your factory must produce hundreds of parts a day, a semi-automatic or fully automatic press will save you significant time and labour, making it the better long-term investment.
We stand out because we focus on quality, trust, and service. We build machines to last, using superior components. As your partner in manufacturing, we offer customization, expert guidance during purchase, fast delivery, and exceptional after-sales support. We don’t just sell equipment; we sell reliable solutions to power your business.
