Hydraulic Cylinder and Power Pack – A Reliable System for Industrial Applications
A hydraulic cylinder and power pack are two essential components of a hydraulic system used for generating linear motion or force. Let’s discuss each component individually:

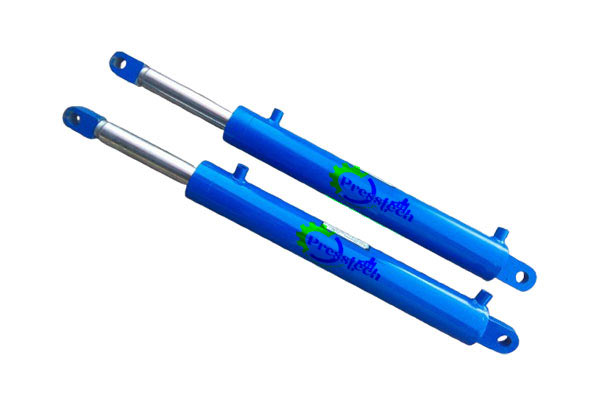

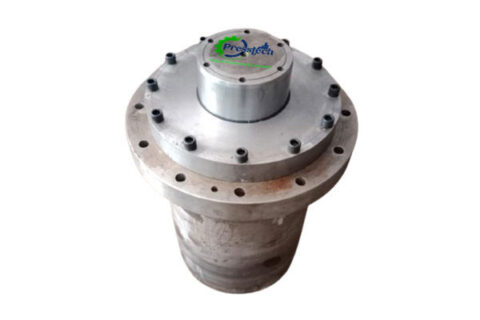

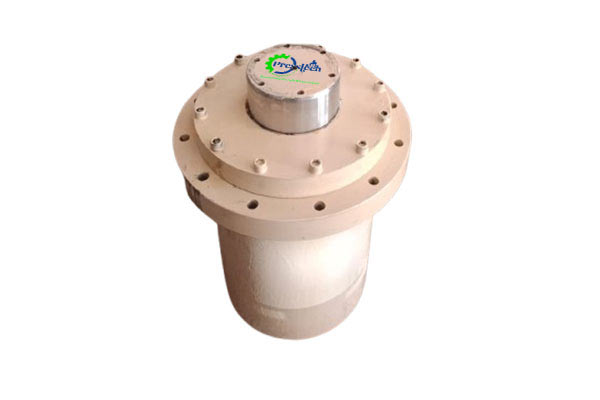

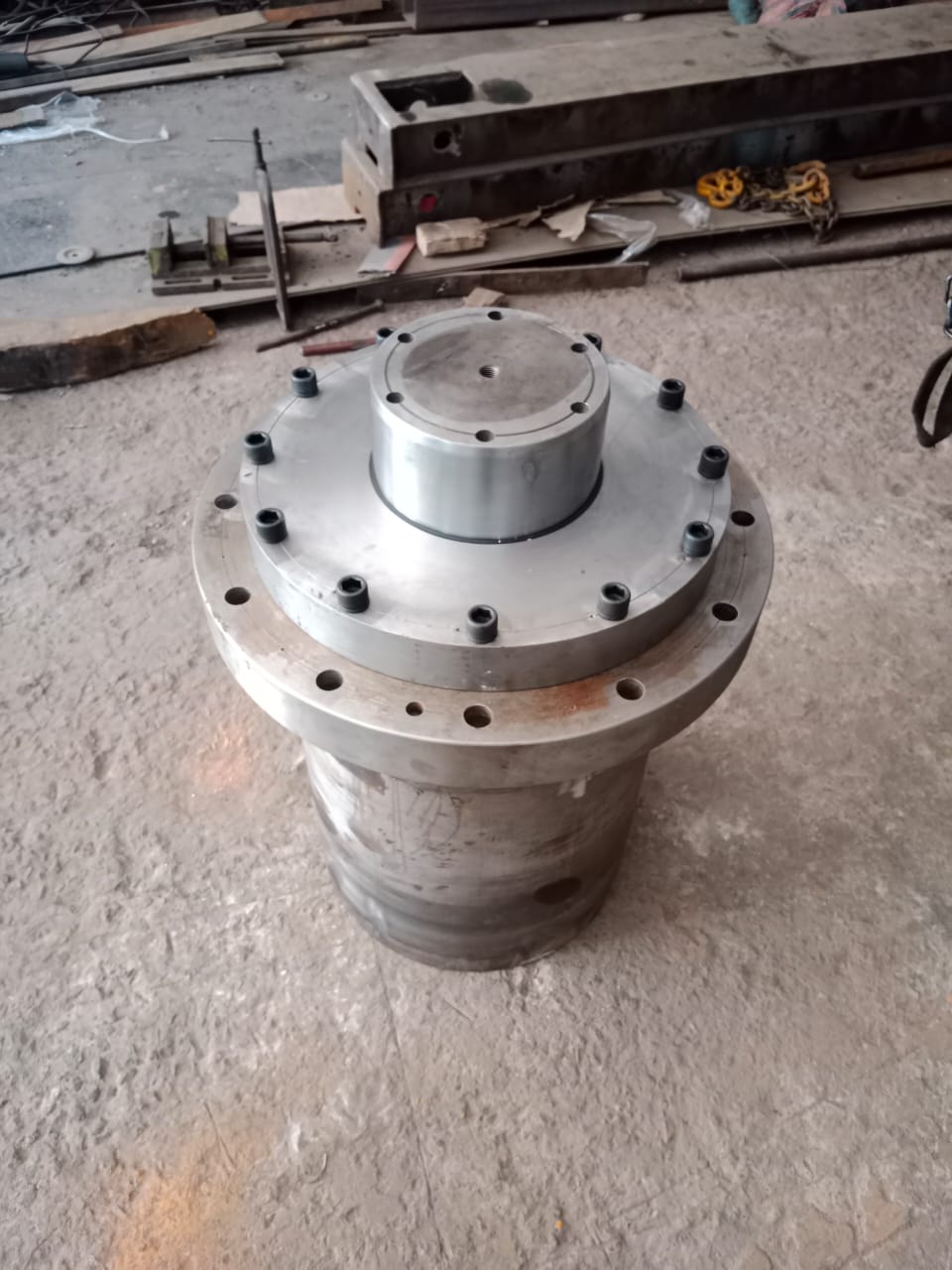

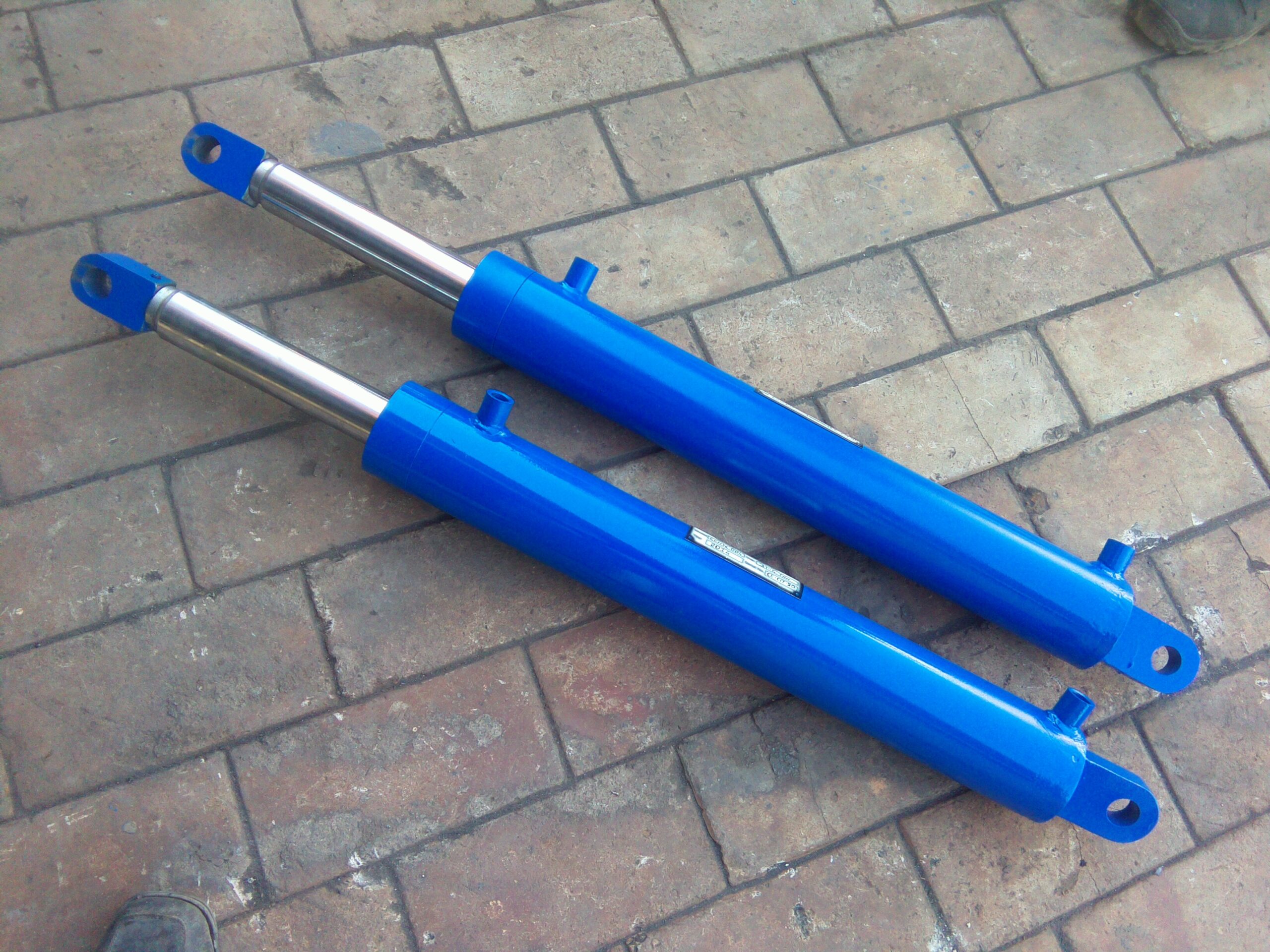

- Hydraulic Cylinder: A hydraulic cylinder is a mechanical actuator that converts hydraulic energy into linear force and motion. It consists of a cylindrical barrel, a piston or plunger, a piston rod, and various seals. When hydraulic fluid (usually oil) is supplied under pressure to one side of the piston, it creates a force that moves the piston in a linear direction. The piston rod extends from the cylinder and transfers the generated force to the desired application. Hydraulic cylinders are commonly used in various industries, such as construction, manufacturing, and automotive, to perform tasks like lifting, pushing, pulling, and bending.

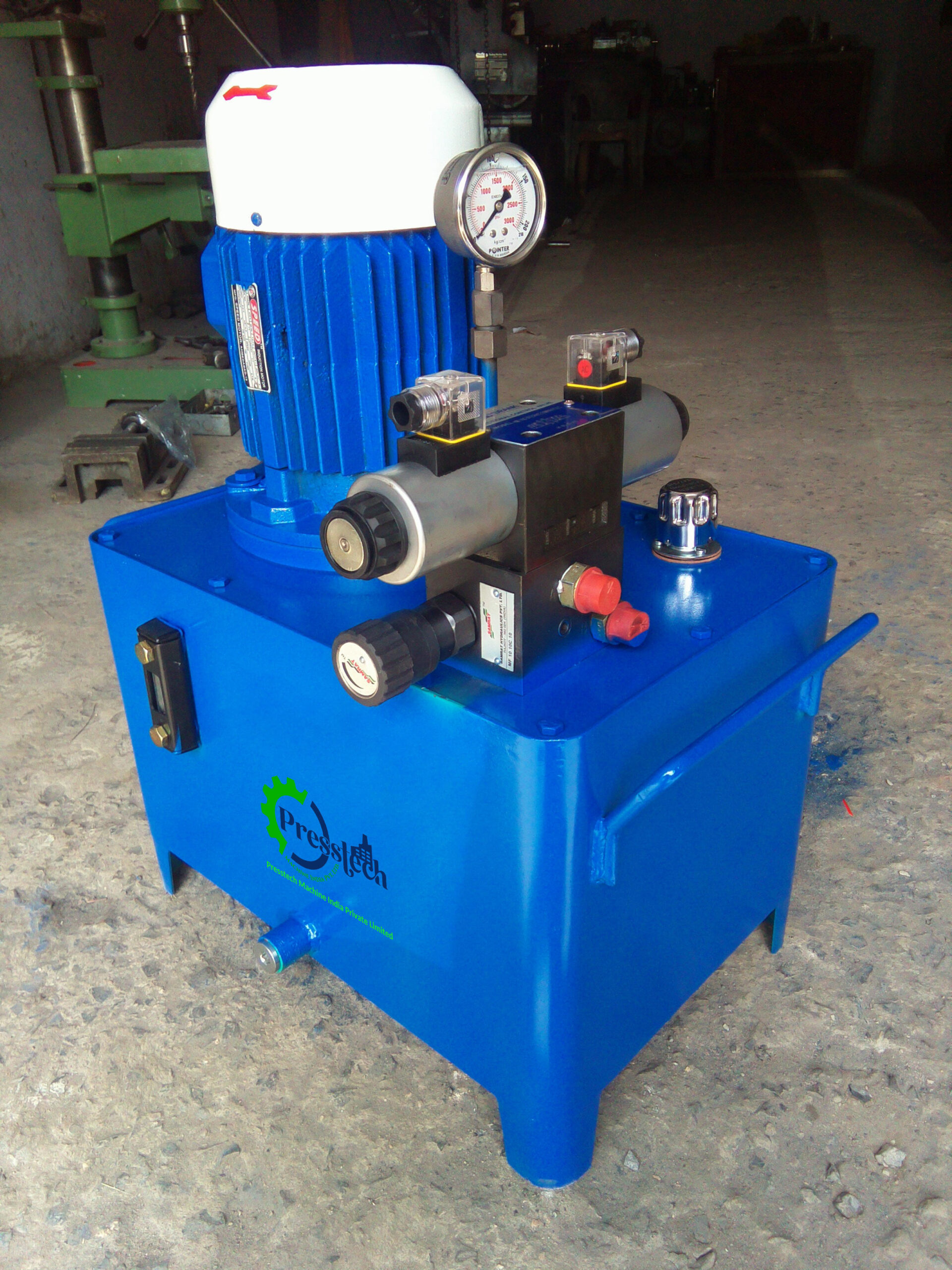

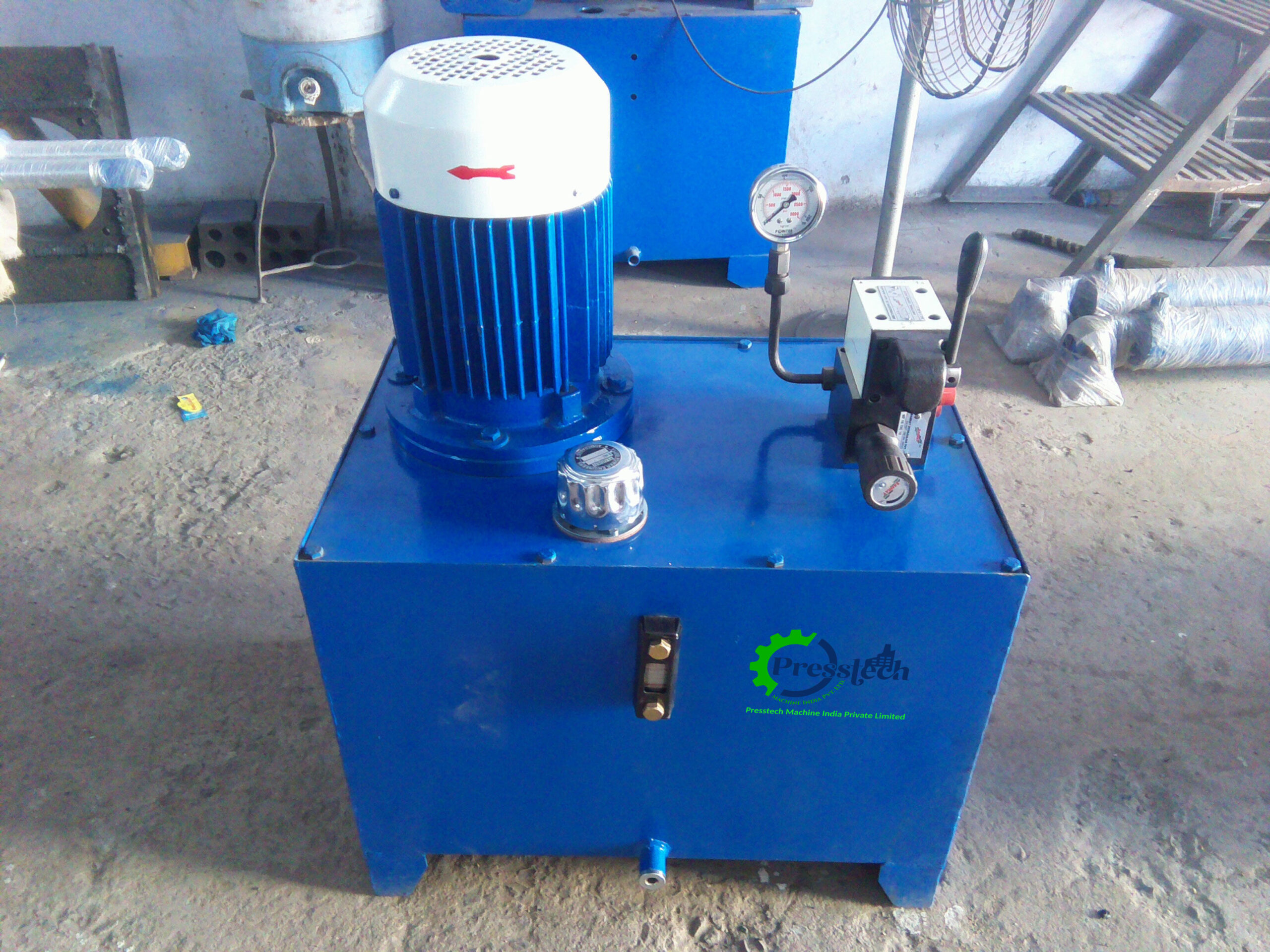

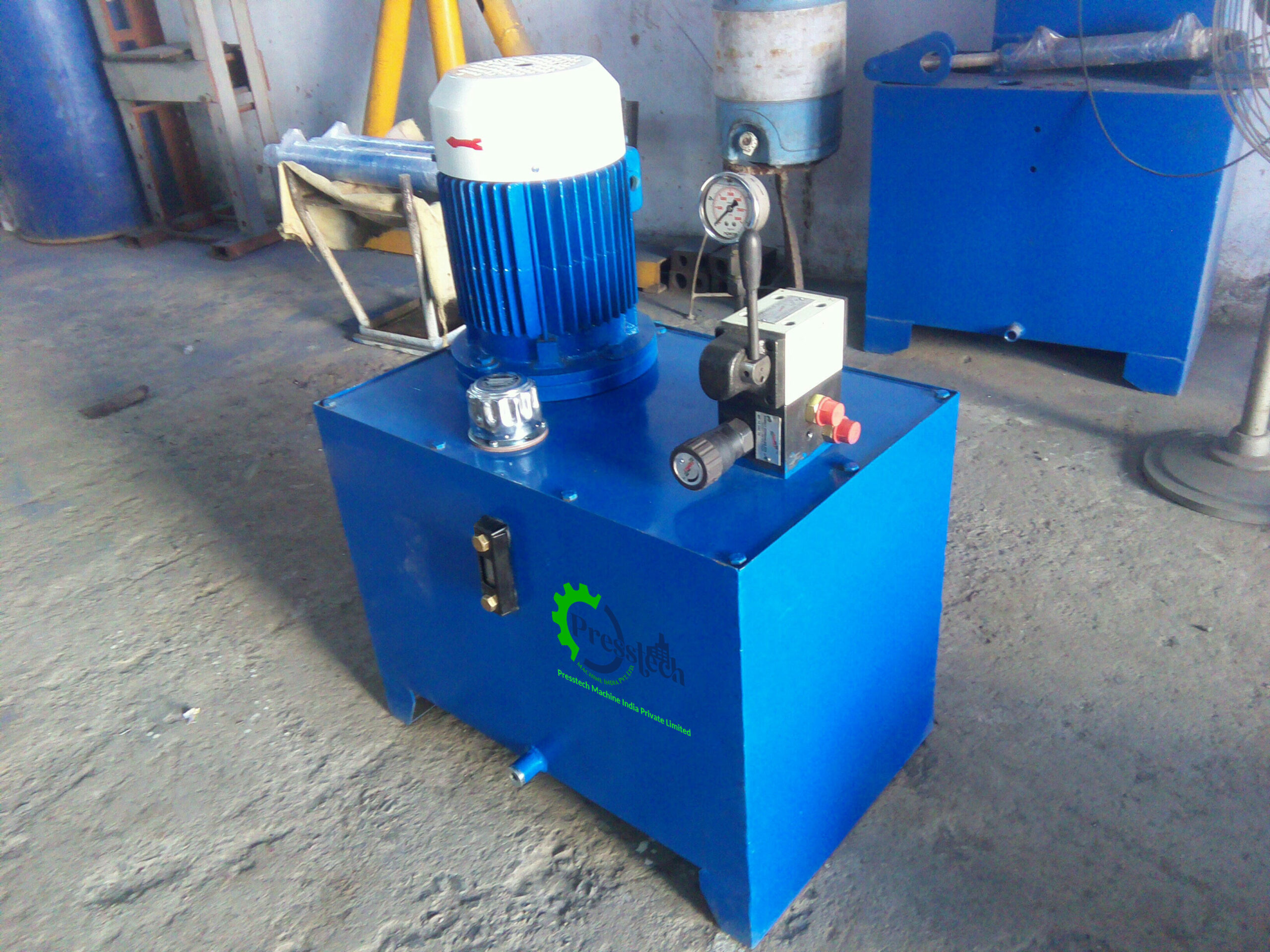

- Power Pack: A power pack, also known as a hydraulic power unit (HPU), is a self-contained device that supplies hydraulic power to the hydraulic system. It typically consists of an electric motor, a hydraulic pump, a reservoir to store hydraulic fluid, valves, filters, and other necessary components. The electric motor drives the hydraulic pump, which pressurizes the hydraulic fluid and sends it to the hydraulic cylinders or other hydraulic components. The power pack also incorporates control valves to regulate the flow and pressure of the hydraulic fluid. Power packs can be customized based on the specific requirements of the hydraulic system, such as flow rate, pressure range, and operating conditions.

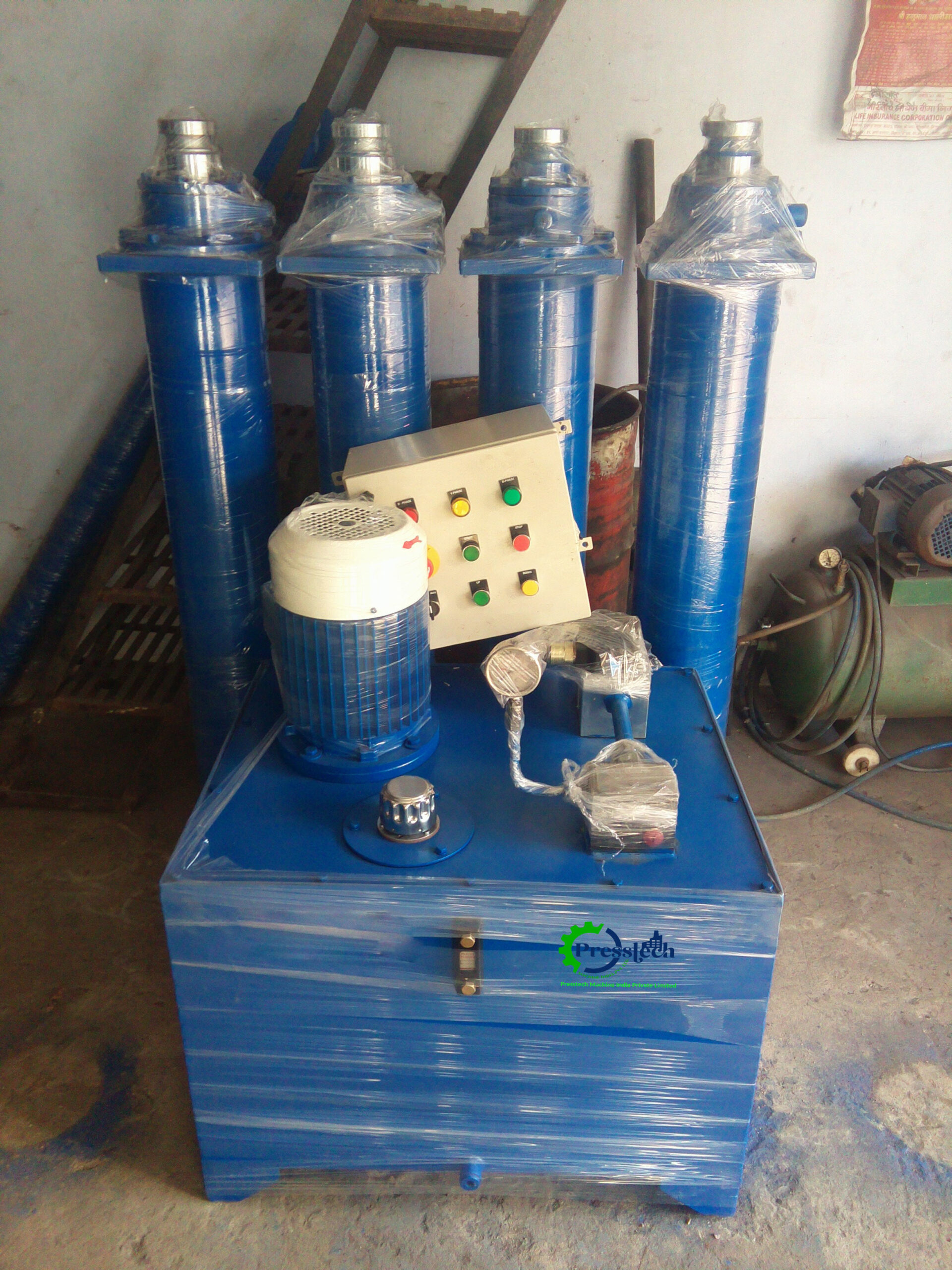

The combination of a hydraulic cylinder and power pack forms a complete hydraulic system capable of performing various tasks requiring linear force or motion. The power pack supplies pressurized hydraulic fluid to the cylinder, which in turn generates the desired force or motion. The power pack can be located near the hydraulic cylinder or placed remotely, depending on the application and design considerations.
It’s worth noting that hydraulic systems offer several advantages, such as high force capability, precise control, smooth operation, and the ability to transmit power over long distances. Presstech Machine India Pvt. Ltd. is a trusted manufacturer and supplier of hydraulic cylinder and power pack systems in Ahmedabad and across Gujarat, offering reliable and customizable solutions for various industries. They are widely used in applications ranging from heavy machinery and industrial equipment to aircraft and automotive systems.
Application Of Cylinder and Power Pack System
Hydraulic cylinders and power pack find application in a wide range of industries and systems due to their ability to generate linear force and motion. Here are some common applications:
- Industrial Machinery: Hydraulic cylinders are extensively used in industrial machinery for tasks such as lifting heavy loads, pressing, clamping, and bending. They are found in hydraulic presses, material handling equipment, injection molding machines, metal forming machines, and more.
- Construction Equipment: Hydraulic cylinders and power packs are vital components in construction machinery like excavators, cranes, loaders, backhoes, and bulldozers. They enable the lifting and movement of heavy objects, operation of booms and buckets, and stabilization of equipment.
- Agricultural Equipment: Hydraulic systems are prevalent in agricultural machinery, including tractors, harvesters, sprayers, and loaders. Hydraulic cylinders are used for steering, lifting and lowering implements, controlling attachments, and adjusting equipment settings.
- Automotive Industry: Hydraulic cylinders and power packs are utilized in various automotive applications. They are employed in vehicle brakes, suspension systems, convertible roofs, hydraulic power steering, and transmission systems.
- Aerospace: Hydraulic systems are crucial in aircraft for functions like landing gear operation, wing flaps, flight control surfaces, and brakes. Hydraulic cylinders provide precise control and reliability in these critical aerospace applications.
- Marine Applications: Hydraulic cylinders and power packs are found in marine systems for steering mechanisms, hatch and door operations, winches, cranes, and stabilizers. They provide robust and efficient power transmission in demanding marine environments.
- Material Handling: Hydraulic cylinders are widely used in material handling equipment like forklifts, scissor lifts, and conveyor systems. They enable lifting and lowering loads, tilting platforms, and controlling material flow.
- Civil Engineering: Hydraulic cylinders are employed in civil engineering projects for tasks like bridge construction, dam gates, lock systems, and large-scale infrastructure projects. They provide the necessary force and motion for heavy-duty applications.
- Waste Management: Hydraulic cylinders and power packs are used in waste management systems such as garbage compactors and hydraulic lifts for waste disposal trucks. They facilitate waste compression and efficient collection.
These are just a few examples of the numerous applications where hydraulic cylinders and power packs play a vital role. Their versatility, high force capacity, and precise control make them indispensable in various industries where linear force and motion are required.
FAQs
A hydraulic cylinder and power pack system consists of two essential components: the hydraulic cylinder that converts hydraulic energy into linear force, and the power pack that supplies hydraulic power to the system. Together, they perform tasks such as lifting, pushing, and bending in various industries.
A hydraulic cylinder uses hydraulic fluid supplied under pressure to move a piston within the cylinder. This generates force that is transferred via a piston rod to perform tasks such as lifting, pushing, and bending materials.
A hydraulic power pack (HPU) is a self-contained unit that provides hydraulic power to the system. It consists of an electric motor, hydraulic pump, and valves to regulate the flow of fluid to the hydraulic cylinders, enabling efficient operation.
Hydraulic cylinders and power packs are widely used in industries such as construction, automotive, aerospace, material handling, and waste management, among others, for tasks requiring linear force and motion.
The key features include precise force generation, smooth operation, durability, and customizable solutions based on specific application requirements. These systems are designed for high force capacity, reliability, and safety.
Yes, hydraulic cylinders and power packs can be customized based on specific needs, including flow rate, pressure range, and operating conditions, making them versatile for various industrial applications.
The hydraulic system ensures efficient operation by using controlled hydraulic pressure, which allows for smooth and precise movement, high force capacity, and the ability to transmit power over long distances.
